Instant Electric Faucet Tap Under Sink Fast Hot Water Heater Kitchen Home 1500W
Product details
| Management number | 230825209 | Release Date | 2026/06/18 | List Price | US$33.48 | Model Number | 230825209 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

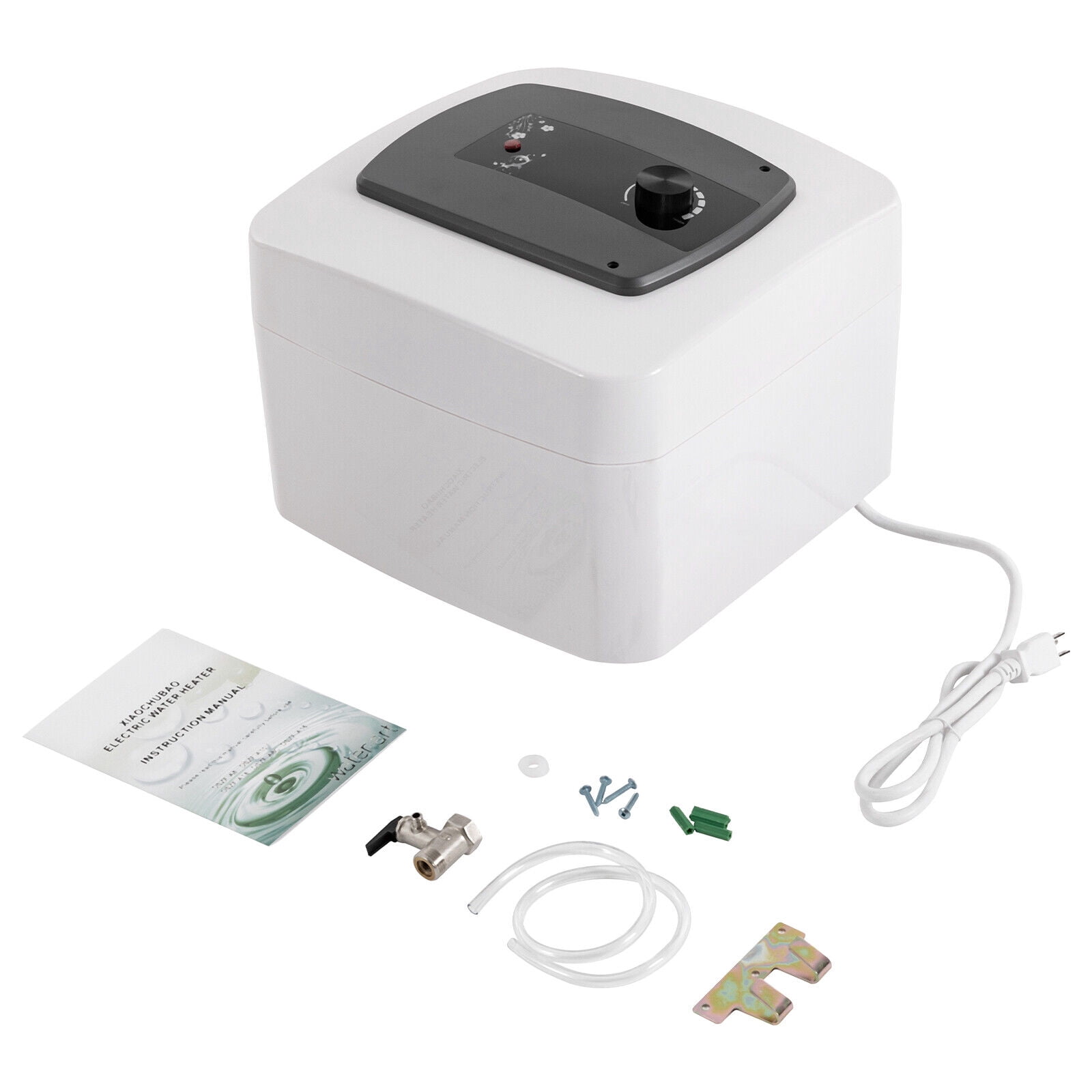

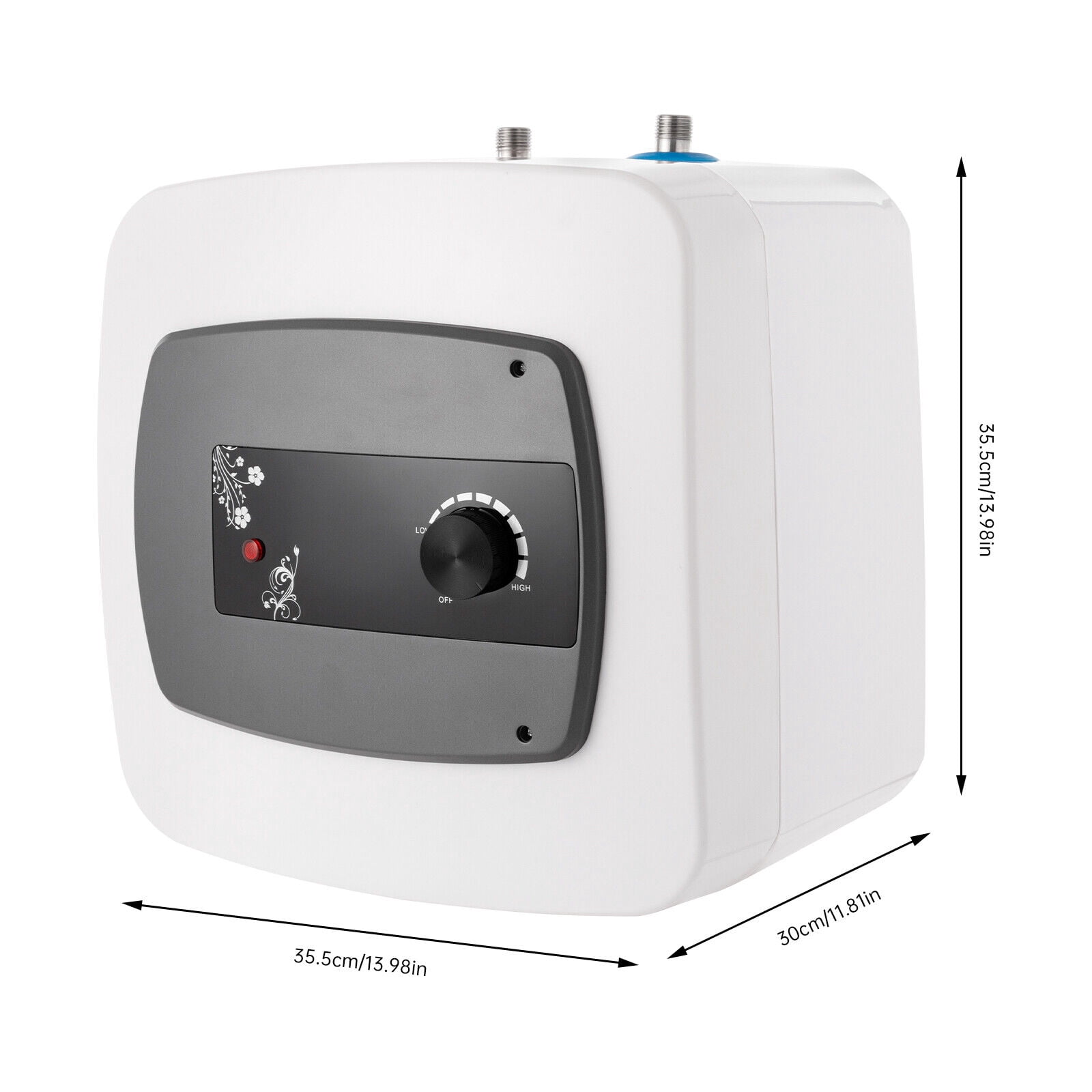

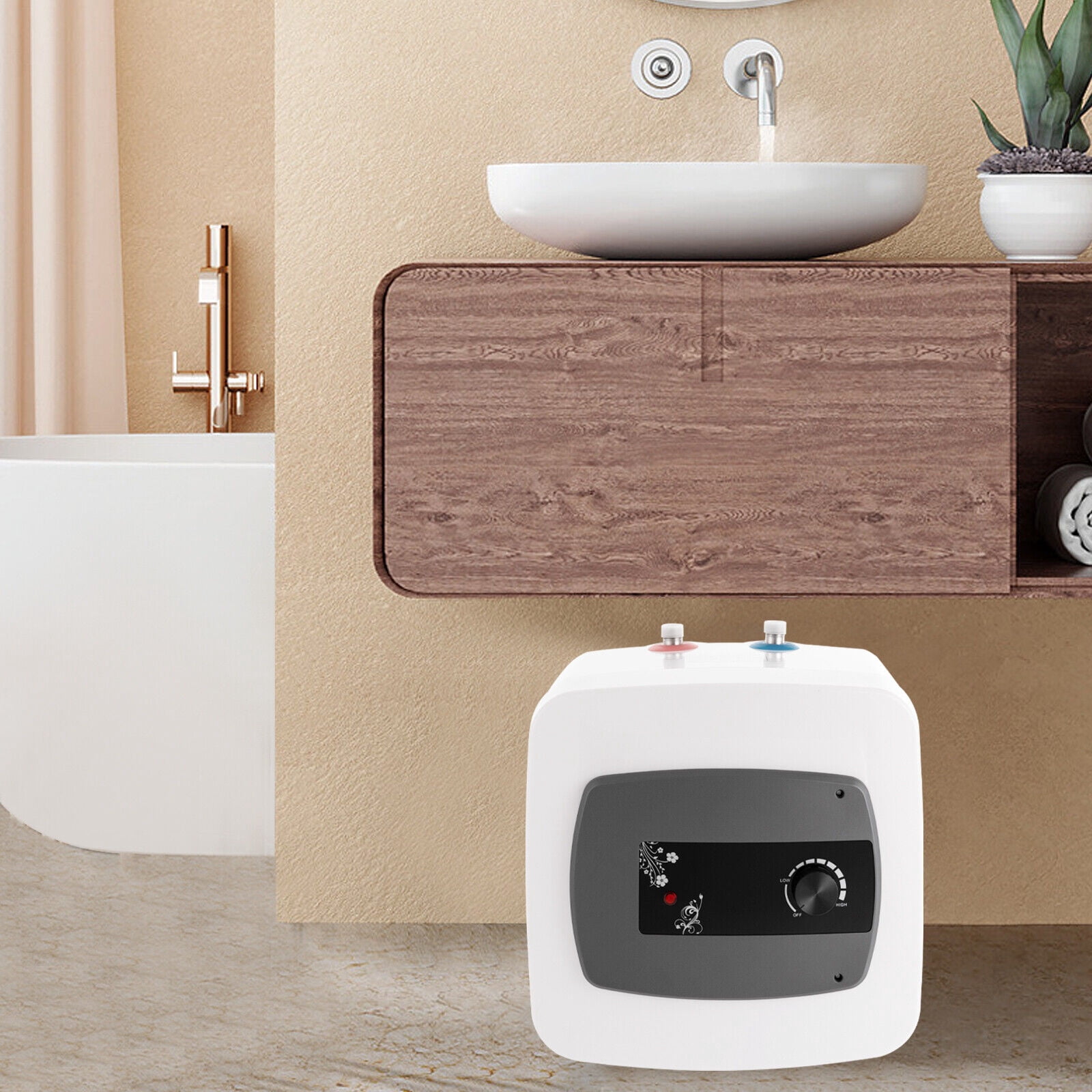

<p>Do you find yourself struggling with a limited living space and inadequate hot water supply? Have our mini-tank electric water heater and say goodbye to your worries! It uses a 1500W stainless steel heating tube and 2.64Gal water tank, providing you with sufficient hot water and allowing for a comfortable washing experience. The multiple protections ensure high safety of water use. The mini body and modern appearance make it a great companion for a sink or kitchen. It is suitable for kitchens, cupboards, bathrooms, RVs, bars, schools, hospitals, communities, hair salons, and so on to wash hands, dishes, clothes, and face.</p> <p>Package Included</p> <p>1*Safety Relief Valve</p> <p>1*Hose</p> <p>1*English Manual</p> <p>All Accessories for Assembly</p> <p>Specifications</p> <p>Color: White</p> <p>Style: Modern</p> <p>Anti-freezing: Yes</p> <p>Shape: Rectangle</p> <p>Installation Required: Yes</p> <p>Control Mode: Mechanical</p> <p>Material: 316 Stainless Steel, 304 Stainless Steel, Plastic</p> <p>Number of 316 Stainless Steel Heating Tubes:1</p> <p>Mounting Type: Wall-mounted, Vertical</p> <p>Water Inlet Mode: Lower Water Inlet</p> <p>Water Outlet: Top outlet, Lower Outlet</p> <p>Power Source: Corded Electric</p> <p>Plug: US Standard</p> <p>Efficiency: Ⅱ</p> <p>Wire Section: 2.5mm²</p> <p>Heating Capacity: 75%</p> <p>Model: DSZF-A18-10</p> <p>Capacity: 10L/2.64gal</p> <p>Voltage: 110V, 50Hz</p> <p>Rated Power: 1500W</p> <p>Rated Pressure: 0.7MPa</p> <p>Waterproof Level: IPX4</p> <p>Temperature Regulation Range: 30-65°C/86-149°F</p> <p>Power Cord Length: About 1m/3.28ft</p> <p>Pipe Length: About 60cm/23.62in</p> <p>Reserved Installation Height(Upper Outlet): 50cm/19.69in</p> <p>Product Size: 35.5*30*35.5cm/13.98*11.81*13.98in</p> <p>Package Size: 40*35.2*41cm/15.75*13.86*16.14in</p> <p>Gross Weight: 5.5kg/12.13lbs</p>
- Selected Material: The high-quality plastic shell is impact-resistant and durable. The 304 stainless steel liner will not rust to affect the water quality and water cleanliness after long-time use, so you can use it without worrying.
- Energy Saving: Adopting foam insulation technology combined with a stainless steel liner, this product has an excellent preservation effect, which can save unnecessary power consumption. Moreover, it is installed close to the water outlet and refuses to waste due to the excessively long pipeline of the electric water heater.
- High Efficiency: The 1500W power and the stainless steel heating tube with fast thermal conductivity can provide you with hot water in a short period, avoiding prolonged waiting.
- Safe to Use: Its automatic shut-off function after reaching the set temperature, triple protection function (over-voltage protection, over-temperature protection, anti-dry burning), anti-leakage triangular socket, IPX4 protection level, and practical safety valve effectively ensure safety and allow you to use it with peace of mind.

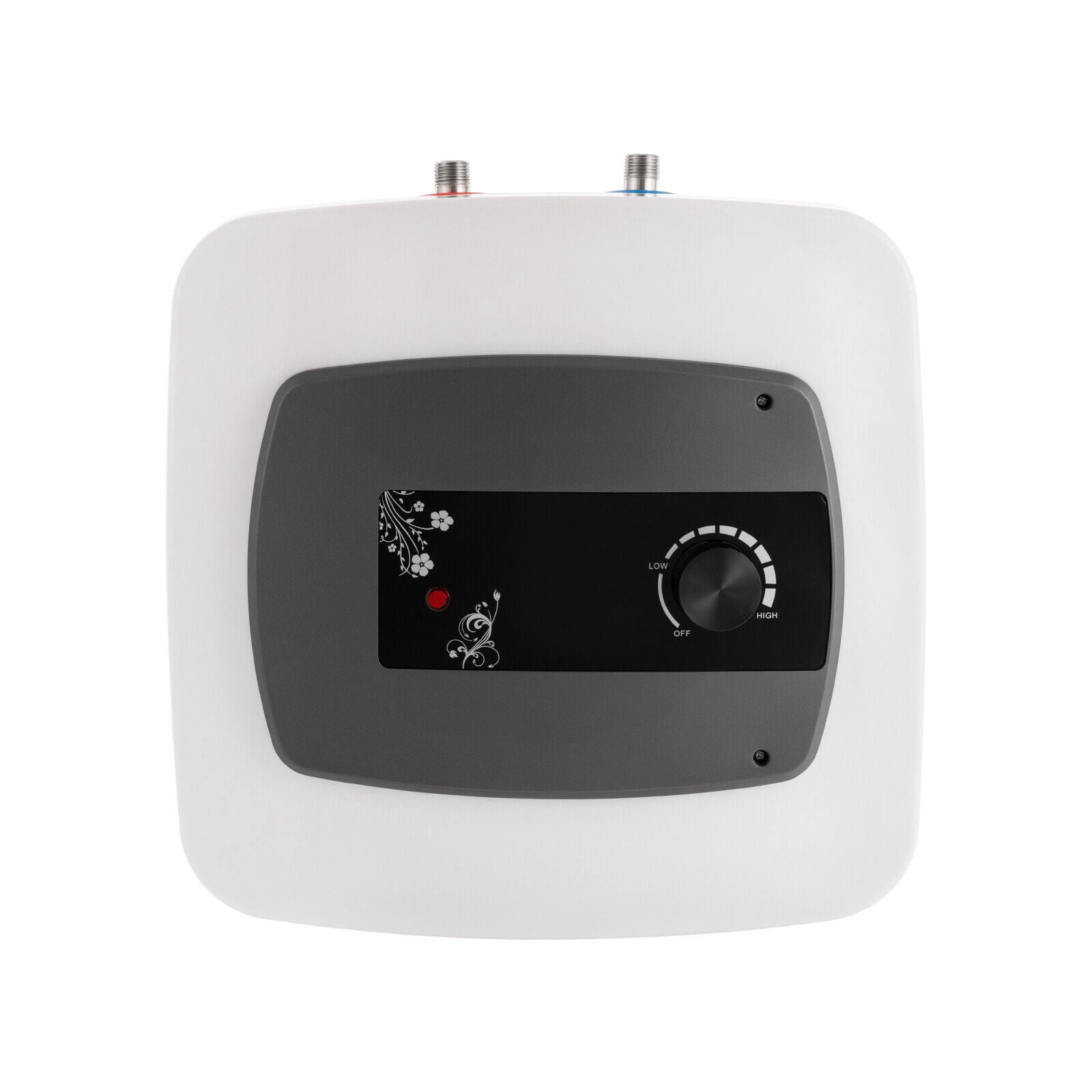

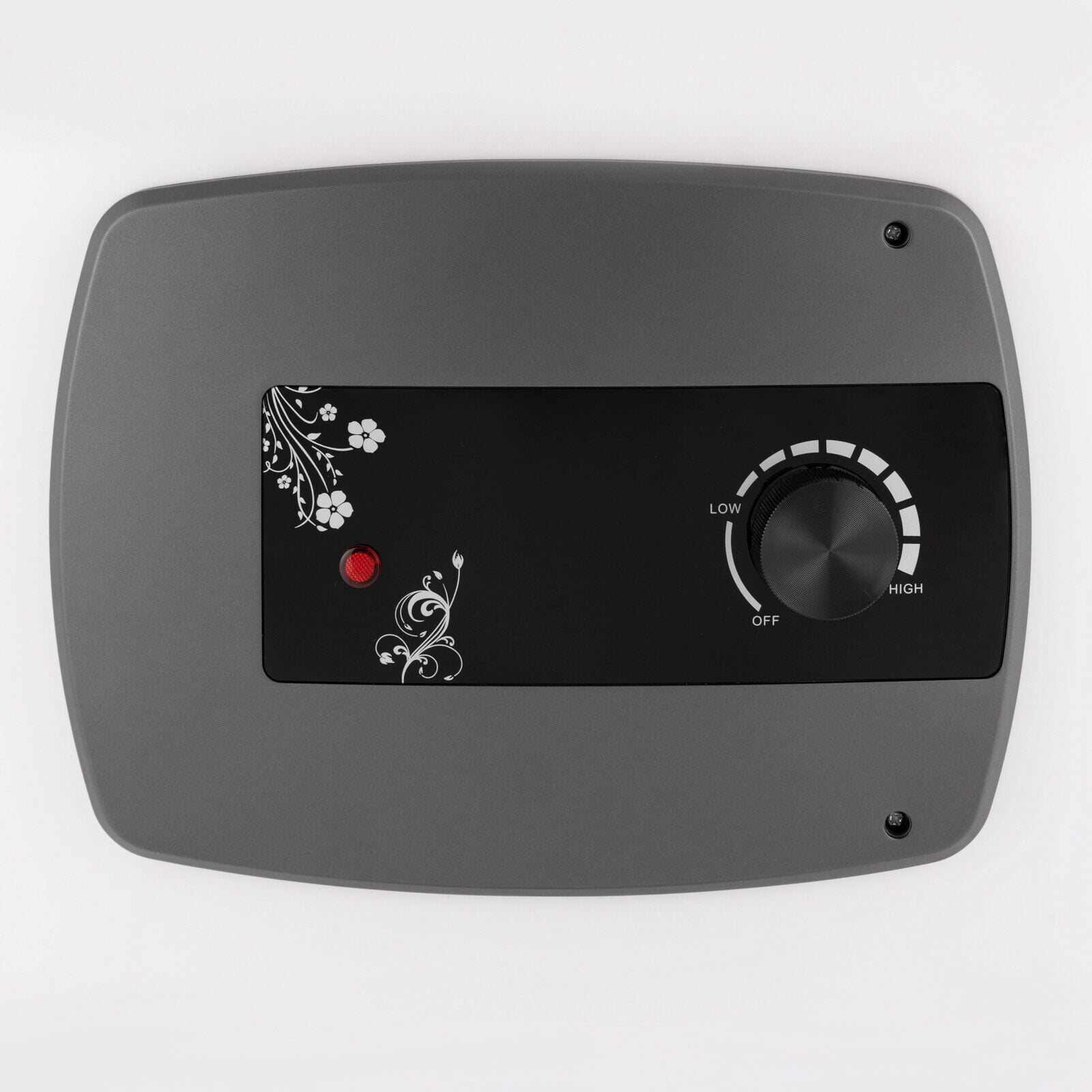

- Simple Operation: You only need to control the temperature(86-149 °F) through the knob to meet different washing needs. The heating indicator light and clear cold and hot water prompts enable even the elderly to quickly grasp it.

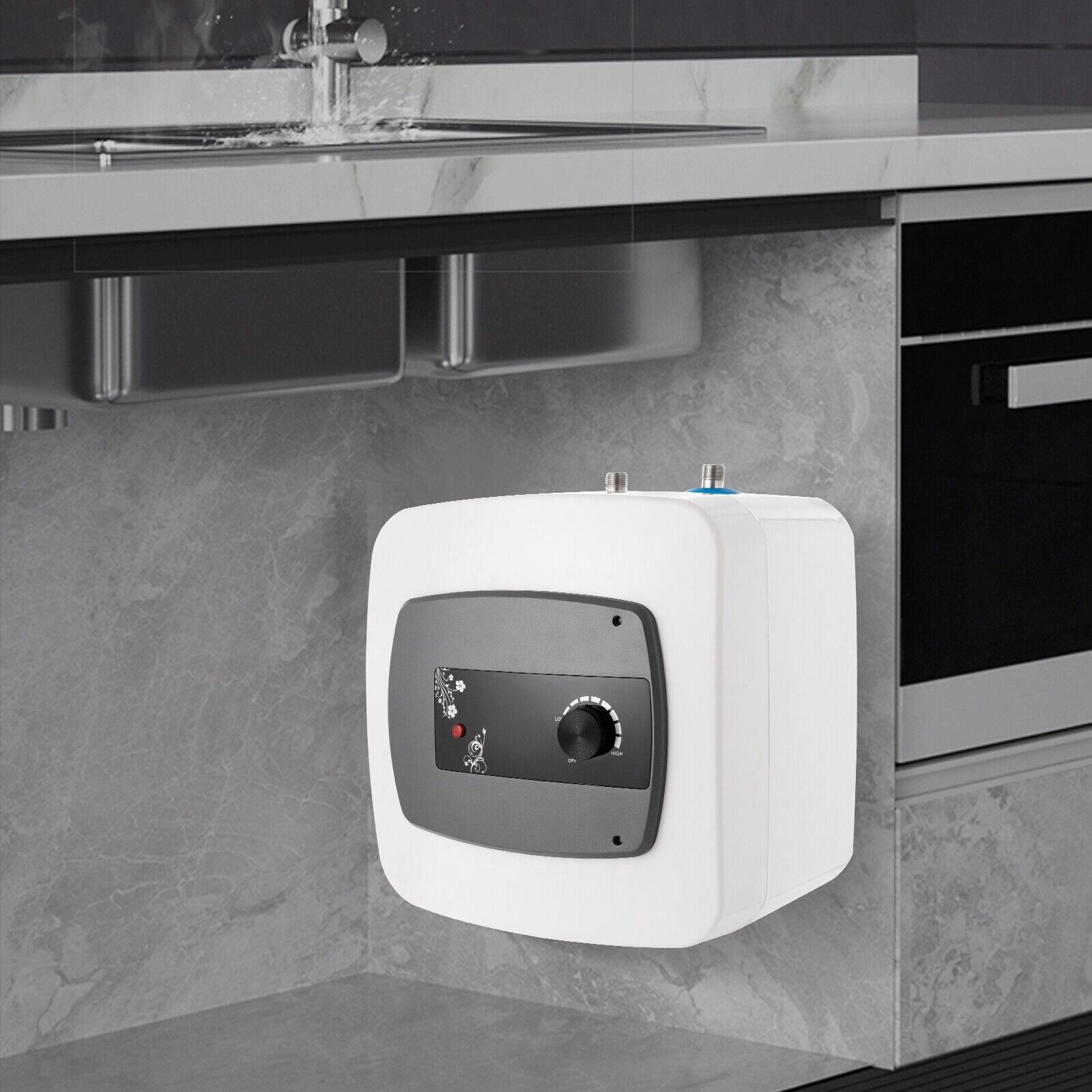

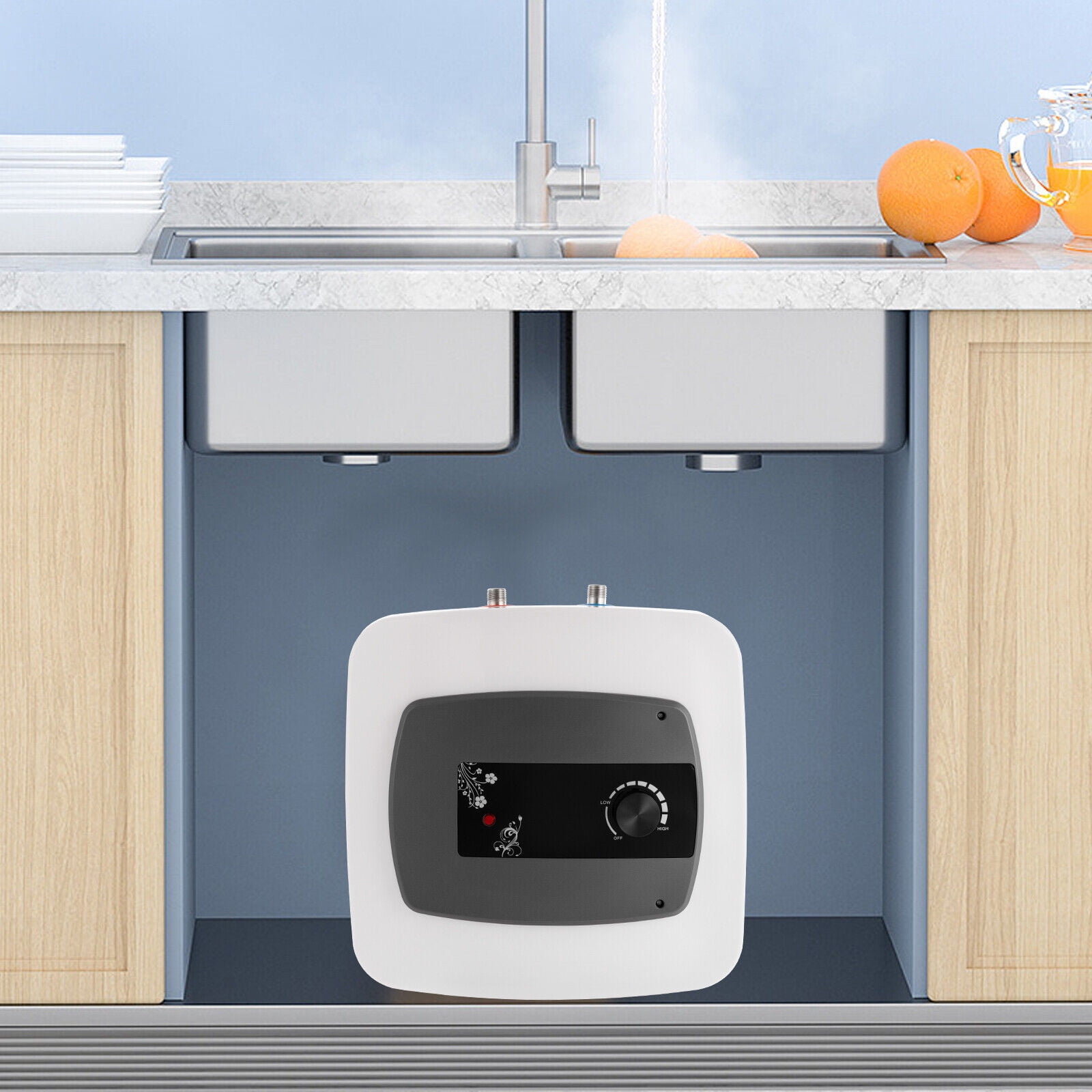

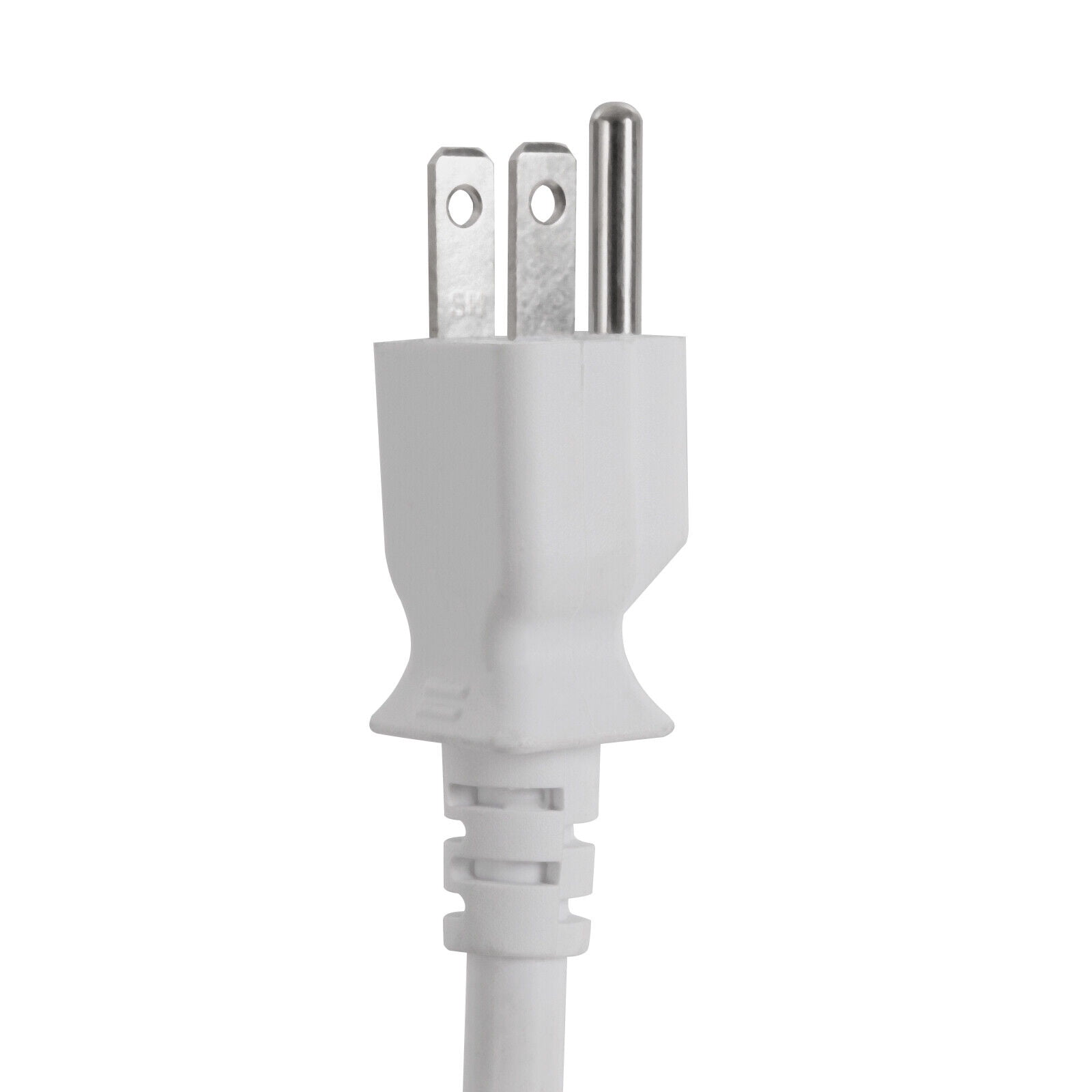

- Long Power Cord: The approximately 3.28ft power cord reduces usage restrictions and allows for easy installation in your cupboard or under the sink.
- A 19.69-inch space needs to be reserved for the installation of an upper water outlet.
- Please beware of potential safety hazards when using electricity. Improper installation may lead to significant safety hazards. It is important to ensure that it is installed by professionals and not install it on your own.
- The installation of this product requires the following conditions: 0.1MPA water pressure tap, dual-use cold and hot water faucet, and three plug power sockets (the installation position should have a drop of more than 16.4 ft from the water tower). Please make sure that the grounding wire is properly connected during installation and do not use a mobile outlet.

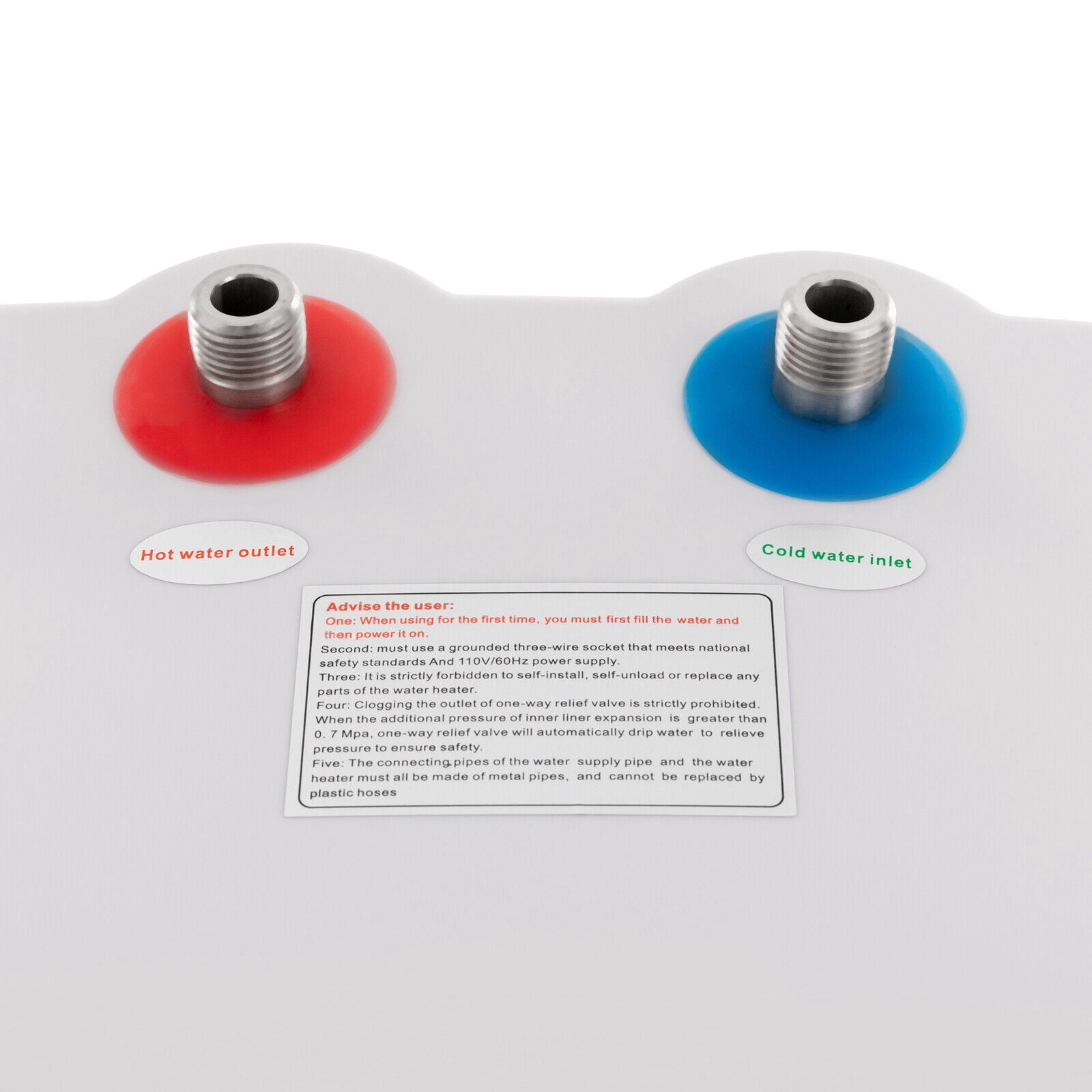

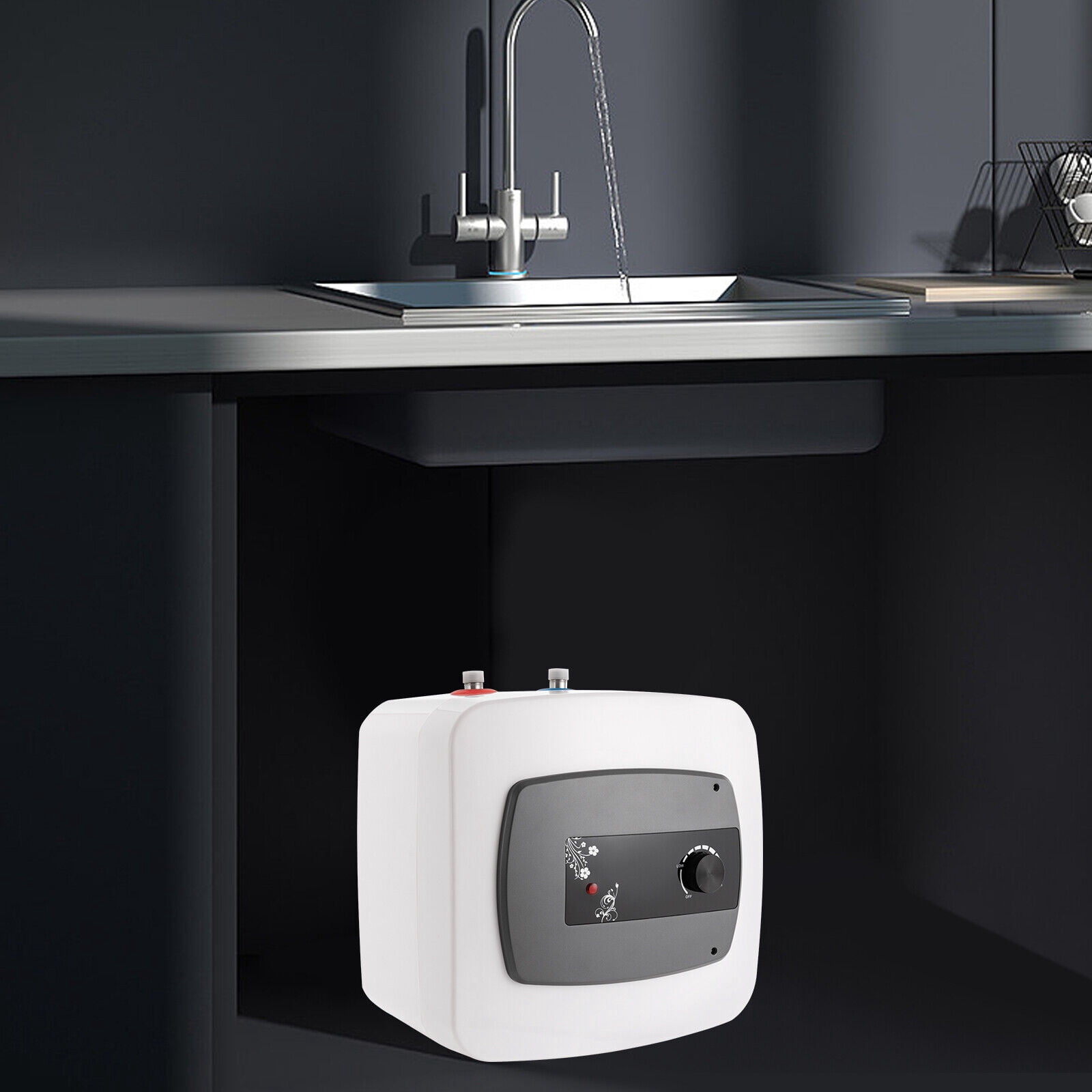

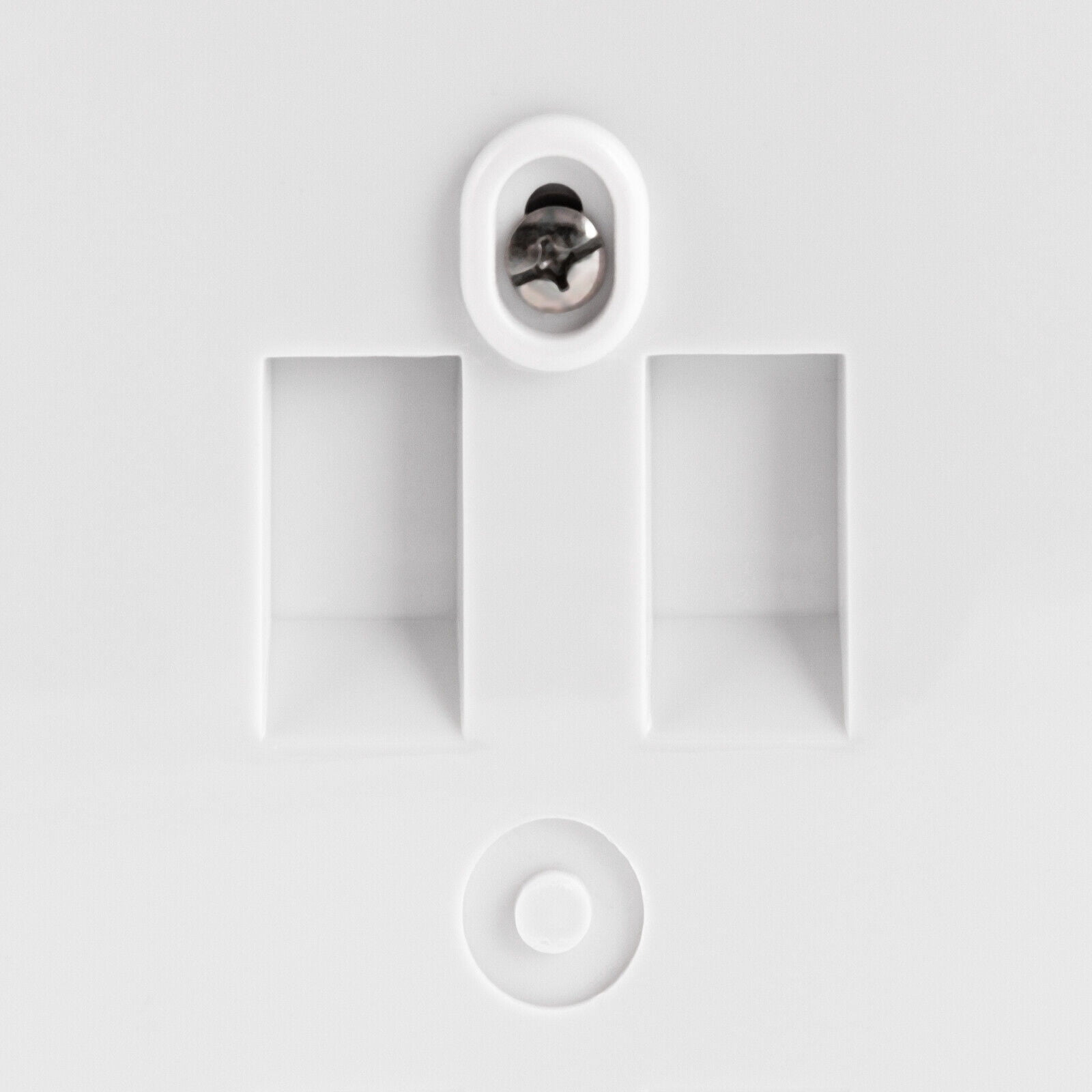

- Please do not install the machine upside down, sideways, or upside down. The top water outlet is recommended to be installed under the water basin. Please install an electrical barrier(not included) at the red hot water outlet and a pressure relief valve at the blue cold water inlet. Please make sure the water heater is mounted firmly to bear the weight of the water heater after it is filled with sufficient water. It should be connected to water first and then to electricity.
- When using this product for the first time, please rinse the water thoroughly before turning on the power (do not use it when the water is off). Please note that the connecting pipe between the inlet pipe and the water heater must be an all-metal pipe. When not in use for a long time (more than 24 hours), please turn off the water source and cut off the power supply.
- After long-term use, the scale will gradually accumulate inside the water tank. It is recommended to clean every 12 to 18 months to extend the service life of the inner tank and heating tube and ensure clean water quality. The water passing through it cannot be directly consumed.
- Please note that it is strictly prohibited to block the outlet of the one-way safety valve. When the inner liner is heated by thermal expansion, the additional pressure will be greater. When the pressure reaches 0.7MPa, the one-way safety valve will automatically drip water to relieve pressure, ensuring safety.
| Faucet type | Kitchen Faucets |
|---|---|
| Material | Stainless Steel |
| Color | White |
| Features | Easy Installation |
| Rec location | Kitchen |
| Rec. use | Kitchen |
| Has written warranty | No |
| Accessories | 1*Safety Relief Valve 1*Hose 1*English Manual All Accessories for Assembly |
| Shape | Rectangle |
| Model | DSZF-A18-10 |
